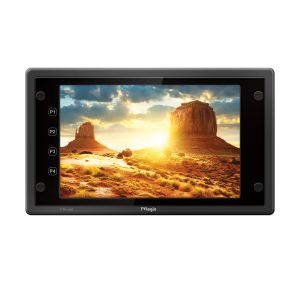

F-7H mk2 Ultra-Bright 7’’ Field Monitor with PreTouch Keys

LIST PRICE: £1,976.00
OUR PRICE:
£1,778.00 ex. Vat
£2,133.60 inc. Vat

Request more information

Your Name:

Email address:

and/or telephone:

I would like:

More information

A telephone callback

An official quotation

An on-site demonstration

Enter the characters:
Change Image

Please tick this box to confirm you consent to us storing your personal details in order to provide more information to you about this product. GDPR

F-7H mk2 Ultra-Bright 7’’ Field Monitor with PreTouch Keys Description

The F-7H mk2 is a 7â€â??â€â?? 1920x1080 resolution field monitor that offers max. luminance of 3,600nits with enhanced sharpness and peaking boost function via new image processing engine. While delivering the same high quality picture and professional features of the previous model, F-7H mk2 shows far less reflection with Anti-Glare film and faster access to frequent preset modes via front touch keys.

F-7H mk2 Ultra-Bright 7’’ Field Monitor with PreTouch Keys Specification

Download PDF Specification Sheet

Display Spec.

Size 7"

Resolution 1920 X 1080 (16:9)

Pixel Pitch 0.078(H)x0.078(V)mm

Color Depth 16.7M

Viewing Angle 160ÂÂÂÂ°(H) / 160ÂÂÂÂ°(V)

Luminance 3,600cd/m2

Contrast Ratio 1,200:1

Display Area 151.2(H)?-94.5(V) mm

Input

1 X BNC 3G-SDI Input

1 X HDMI HDMI Input

Output

1 X BNC 3G-SDI Output

1 X HDMI HDMI Output

Audio

Audio In Embedded Audio

Audio Out Analog Stereo (Phone Jack)

FPGA Functions

, 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, H/V Flip, Key Lock,

Luma(Y') Zone Check, Marker, Max Brightness On/Off, Mono, Range Error, Time Code Display, User Aspect,

Various Scan Modes, Waveform/Vector, Zoom, Camera Lut., Arri Camera Metadata

Closed Caption

Calibration

, 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import

Other Functions

USB Firmware update by USB cable Firmware update by USB memory stick

Ethernet

Conversion HDMI-to-HDMI, HDMI-to-SDI, SDI-to-HDMI, SDI-to-SDI,

Options

Battery Bracket, HDMI Bracket, Camera Mount, Ball Head, Carrying Case, D-Tap Cable, External Acrylic Filter,

Gold Mount, Sun Hood, L-Type BNC Connector , V-Mount

About

Since 2002, TVLogic has been dedicated to developing and manufacturing the highest quality video monitoring systems available for broadcast, production and post-production as well as digital signage & multi-viewer applications. Today, TVLogic is among the world's leading broadcast and professional monitor manufacturers and offers the widest range of video monitoring solutions in the industry. Our precision-engineered technology and innovative designs provide customers in top broadcast and production facilities around the world with reliable reference grade displays for the most demanding critical viewing applications. TVLogic's 2011 monitor line-up offers 30 models that encompass a wide variety of professional video display requirements.
