F-5A : 5.5’’ Full-featured Field Monitor with FHD IPS-LCD

LIST PRICE: £780.00
OUR PRICE:
£710.00 ex. Vat
£852.00 inc. Vat

Request more information

Your Name:

Email address:

and/or telephone:

I would like:

More information

A telephone callback

An official quotation

An on-site demonstration

Enter the characters:
Change Image

Please tick this box to confirm you consent to us storing your personal details in order to provide more information to you about this product. GDPR

F-5A : 5.5’’ Full-featured Field Monitor with FHD IPS-LCD Description

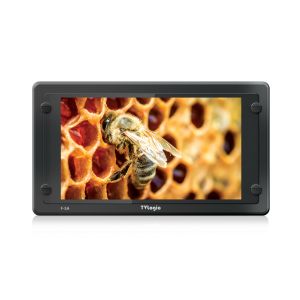

The F-5A is a compact and light-weight field production monitor with Full HD resolution of 1920 x 1080, nice viewing angle and max luminance of 500nit. Equipped with a new image processing engine, F-5A reproduces even better sharpness and peaking boost capability for focus pullers. It also supports various video formats via 3G-SDI and HDMI 1.3 interface. And also support professional features such as Waveform/Vectorscope, Focus Assist, 3D LUT import, Camera Logs and HDR emulation.

F-5A : 5.5’’ Full-featured Field Monitor with FHD IPS-LCD Specification

Download PDF Specification Sheet

Display Spec.

Size 5.5"

Resolution 1920 X 1080 (16:9)

Pixel Pitch 0.0213(H) X 0.0639(V)mm

Color Depth 16.7M

Viewing Angle 160ÂÂÂ°(H) / 160ÂÂÂ°(V)

Luminance 500cd/m2

Contrast Ratio 1,000 : 1

Display Area 122.7(H) ?- 69(V)

Input

1 X BNC 3G-SDI Input

1 X HDMI HDMI Input

Output

1 X BNC 3G-SDI Output

1 X HDMI HDMI Output

Audio

Audio In Embedded Audio

Audio Out Analog Stereo (Phone Jack)

FPGA Functions

, 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, H/V Flip, Key Lock,

Luma(Y') Zone Check, Marker, Max Brightness On/Off, Mono, Range Error, Time Code Display, User Aspect,

Various Scan Modes, Waveform/Vector, Zoom, Camera Lut., Arri Camera Metadata

Closed Caption

Calibration

, 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import

Other Functions

USB Firmware update by USB cable Firmware update by USB memory stick

Ethernet

Conversion HDMI-to-HDMI, HDMI-to-SDI, SDI-to-HDMI, SDI-to-SDI,

Options

Battery Bracket, HDMI Bracket, Camera Mount, Ball Head, Carrying Case, D-Tap Cable, External Acrylic Filter,

Sun Hood, L-Type BNC Connector ,
