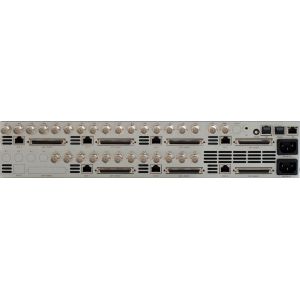

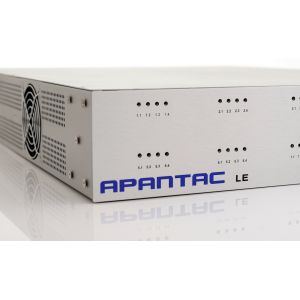

LE-28SD 28 Input SD-SDI Multiviewer with built-in CATX extender

LE-28SD 28 Input SD-SDI Multiviewer with built-in CATX extender Description

LE-28SD 28 Input SD-SDI Multiviewer with built-in CATX extender Specification

• Video Inputs: 28 auto-detect SD-SDI/composite
• Outputs: 1-4 DVI, HDMI,VGA (option),1 SDI (option)
• Output Resolution: 800 x 480 - 2048 x 1080 (1080p)
• Connectors: BNC IEC 61169-8 Annex A
• Total Windows: 28
• Built-in CATx Extender: Up to 35 feet Extend up to 115 feet (with optional active receiver
• Serial Digital: SD-SDI (SMPTE-259M-C)
• On Screen Display: Skin Technology for customizing borders, labels (4 / window), fonts, tally LEDS, clock faces, logos, UMD, OMD, IMD, dynamic UMD
• Equalization: 400m at 270 Mbps with Belden 1694A
• General Purpose IO: 64 inputs with DB9 connectors
• Return Loss: >15db up to 270Mb/s
• Serial Port: RS232 with RS422 or RS485 option, Connector: RJ45 Baud Rate Up to 115200 Supported Protocols: TSL, TSI, AXP
• AES Audio: 4 channels / video input (2 pairs, balanced / unbalanced)
• Analog Stereo Audio:4 channels / video input (balanced / unbalanced)
• Embedded Audio: SMPTE-272M-A
• IP: 100 Base-TX, Supported Protocols: TSL, AXP, Connector: RJ45
• Alarms: No audio, audio high / low, no video, video black, video frozen, WSS, AFD
• Control: Front panel buttons for quick preset recalls, GPIs, Apantac ASCII Protocol (AXP), Director (configuration and control application)
• Electrical: 200W,
90-250V 50/60 Hz
• EMI/RFI: Complies with FCC Part 15, Class A, CE, EU
• Power: Redundant power supply
• Size: 2RU, 44.5cm (17.5") W x 60cm (23.6") D
