RKM-290A DUAL 9 Description

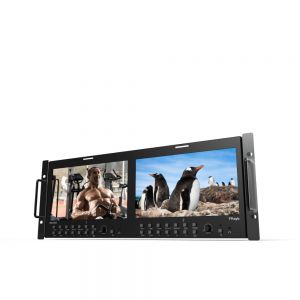

The TVLogic RKM-290A features two 1920 x 1080 resolution, high contrast (800:1) LCD panels in a 4RU rack mount with adjustable tilt range, 2x HD/SD-SDI auto switching inputs, analog input for composite video, 16.7 million colour support, closed captioning support (CEA-608/708), waveform and vectorscope, active format description support, H/V delay, markers and safety, embedded audio metering (8 Ch), timecode display (VITC and LtC), auto colour calibration support and more.
RKM-290A DUAL 9 Specification
Download PDF Specification Sheet
Key Features
- Multi-Format Support (480i, 576i, 720P, 1080i, 1080P, 1080Psf, 2K)
- 2x HD/SD-SDI inputs (Auto Detecting/Switching) with Active Loop Through
- Dual High Definition 9� 1920 x 1080 Wide Screen
- Analog Input for Composite Video
- 4RU of a standard EIA 19� rack
- Analog Stereo Audio Out (Phone Jack)
- Internal Left & Right Speaker (2 x 1 W)
- Blue Only & Monochrome
- Markers & Safety Areas including user defined Markers
- Source ID Function (User Defined in OSD Function)
- Embedded Audio Level Meter (16 Ch) Vertical/Horizontal
- Timecode Display (VITC & LTC)
- Selectable Full & Small Size, WaveForm(Y Cb Cr)/Vector Scope â€" HD/SD (SDI only)
About
Since 2002, TVLogic has been dedicated to developing and manufacturing the highest quality video monitoring
systems available for broadcast, production and post-production as well as digital signage & multi-viewer
applications.
Today, TVLogic is among the world's leading broadcast and professional monitor manufacturers and offers the
widest range of video monitoring solutions in the industry. Our precision-engineered technology and innovative
designs provide customers in top broadcast and production facilities around the world with reliable reference
grade displays for the most demanding critical viewing applications.
TVLogic's 2011 monitor line-up offers 30 models that encompass a wide variety of professional video display
requirements.
