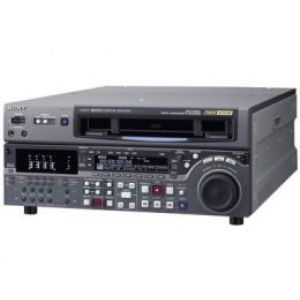

DVW-M2000P Digital Betacam Player/Recorder Description
Digital Betacam is in widespread use world-wide for the production of very high quality programme material. There is a substantial installed base of products and the format is readily accepted by many of the world's most prestigious broadcasters. You can choose from a range of camcorders, studio VTRs, office players and a portable recorder for productions such as drama, natural history, arts, commercials or where you need to guarantee the best results for general TV programming.
The DVW M2000P is the most fully featured VTR in the Digital Betacam line-up. It replaces the DVW-A500P, which for the last 10 years has been the de-facto tool for standard definition productions of the highest quality. The DVW-M2000P records and replays Digital Betacam component digital video. And for the first time in a Digital Betacam VTR, it also replays Betacam, Betacam SP, Betacam SX and MPEG IMX cassettes.
The DVW-M2000P packs high quality video performance, 4 channels of 20 bit digital audio and class-leading editing performance into a compact 4U chassis.
DVW-M2000P Digital Betacam Player/Recorder Specification
- Power Requirements: AC 100 V to 240
V, 50/60 Hz
- Power Consumption: 220 W / AC 240 V
- Operating Temperature: +5C to +40C (+41F
to +104F)
- Storage Temperature: -20C to +60C (-4F
to +140F)
- Humidity: 20% to 90%
(relative humidity)
- Mass: Approx. 23.5 kg
- Dimensions: 427 mm x 174 mm x
544 mm
- Recording Format: Digital Betacam
(625/50)
- Replay Formats: Digital Betacam
(625/50), MPEG IMX (625/50)
Betacam SX (625/50), Betacam SP (625/50),
Betacam (625/50)
Video Input Signals
- Analogue reference: BNC with loop
through
- Analogue composite: BNC with loop
through
- Analogue component: 3 x BNC (Y, R-Y,
B-Y)
- SDI: BNC with active
loop through
Video Output Signals
- Analogue composite: 3 x BNC (one
with character display)
- Analogue component: 3 x BNC (Y, R-Y,
B-Y)
- SDI: 3 x BNC (one with
character display)
- Audio Input Signals
- Analogue audio: 5 x XLR 3-pin
(CH 1 to 4 and CUE)
- Digital audio (AES/EBU): 2 x BNC (CH1/2
and CH3/4)
- SDI: BNC with active
loop through
- Time Code: XLR 3-pin
Audio Output Signals
- Analogue audio: 5 x XLR 3-pin
(CH 1 to 4 and CUE)
- Digital audio (AES/EBU): 4 x BNC (CH1/2,
CH3/4, CH5/6, CH7/8)
- (CH5/6/7/8 are for MPEG IMX playback)
- Analogue monitor: 2 x XLR 3-pin
(assignable from CH 1 to 8)
- SDI: 3 x BNC
- Time Code: XLR 3-pin
Remote Control
- RS-422A IN: D-sub 9-pin
- RS-422A OUT: D-sub 9-pin
- RS-232C (ISR*): D-sub 9-pin
- Video Control: D-sub 15-pin
- Control panel: Circular
connector 10-pin
- Parallel Remote: D-sub 50-pin
