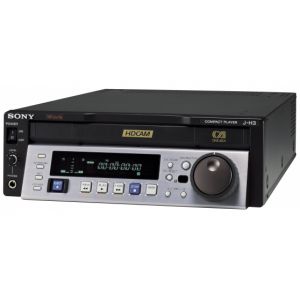

J-H3 HDCAM compact player

OUR PRICE:
£2,250.00 ex. Vat
£2,700.00 inc. Vat

This is a secondhand item

Request more information

Your Name:

Email address:

and/or telephone:

I would like:

More information

A telephone callback

An official quotation

An on-site demonstration

Enter the characters:
Change Image

Please tick this box to confirm you consent to us storing your personal details in order to provide more information to you about this product. GDPR

J-H3 HDCAM compact player Description

To reduce the size and cost of HDCAM off line editing

This machine is the first in a line-up to improve the flexibility, and seriously reduce the cost, of transferring your HDCAM rushes to your on line suite.

This is achieved by a unique combination of small size (same as J series) combined with every useful connection from downconverted SDI, analogue standard definition to i-Link.

A downconverter is included as standard, and it can handle both large and small HDCAM cassettes at 24PsF, 25PsF or 29.97PsF. 24PsF recorded tapes can also be played back at 25P with time code conversion.

This product comes with PrimeSupport - fast, hassle-free repairs and a helpline offering expert technical advice. Which gives you the peace of mind that Sony is looking after your equipment, and your business.

J-H3 HDCAM compact player Specification

Download PDF Specification Sheet

Multiple interfaces

The J-H3 has an HDSDI output as well as analogue Y Pb Pr connectors. The built in downconverter supplies SDI and composite outputs, while the XGA computer output feeds a standard PC monitor. The downconverted signal is also provided as as i-Link (IEEE 1394) interface for a DV feed with audio, timecode and remote control of the J-H3

i.Link interface
(Requires optional HKJ-101 i.Link interface board). DV based off-line editing has become an industry norm. In order to bridge the gap between HDCAM tapes and DV, the J-H3 can be equipped with an i.Link connector by installing the HKJ-101 i.Link interface board.
DV video (525/625 depending on SDTV output), audio (2ch or 4ch), timecode, and machine control can be communicated between the J-H3 and a non-linear editor via a single IEEE1394 connection.
Note that machine control is effective for material capturing purposes only, and frame accurate editing is not supported. Tape-to-tape editing between an external VTR is not supported. Crash-recording via i.Link is possible.

Standard computer monitor interface
The J-H3 has an XGA computer output (regular mini 15 pin D-type), so you can display RGB pictures at 1024 x 577 pixels (that is, letterboxed from the native 1024 x 768) on virtually any computer screen or projector. Timecode and safe area markers can be superimposed.

System frequency
The J-H3 supports 24P, 25P (50i) and 29.97P (59.94i) frequencies. Original 24P tapes can also be played back at 25P with time code conversion and sound (pitch is 4% higher). Both the original 24P and the converted 25P timecode can be superimposed on the outputs. In addition there is a 23.98 PsF playback mode that has a 3:2 pulldown engine to provide 59.94i output (in 1080 and 525)

Off line editior connection
In addition to analogue and digital interfaces, the J-H3 also adds features necessary for frame accurate downloading. Included are a reference input (HD and SD), LTC time code output and an RS-422 connector for locking to an external recorder or non linear editor for straight playout applications.
