4K MICROSPLIT MSX-L Reclocking DA

Call for Price

Request more information

Your Name:

Email address:

and/or telephone:

I would like:

More information

A telephone callback

An official quotation

An on-site demonstration

Enter the characters:
Change Image

Please tick this box to confirm you consent to us storing your personal details in order to provide more information to you about this product. GDPR

4K MICROSPLIT MSX-L Reclocking DA Description

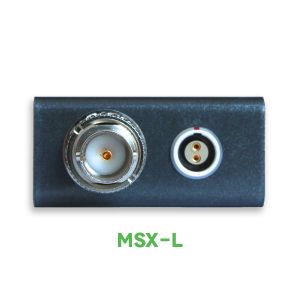

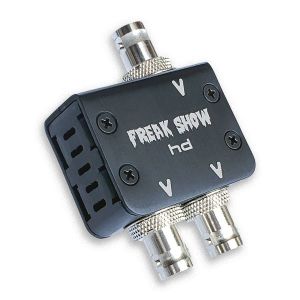

Freakshow, the company with the biggest ideas in 4k/12G distribution, introduces the smallest product yet. Meet the Micro Split (MSX2-L), the worlds most compact 4k/12G Reclocking DA. The Microsplit is available in O-series with a standard Freakshow connector or in L-series with a locking Lemo connector. The latest in reclocking and cable EQ technology extends cable runs up to 700 feet! The Micro Split's 12G/HD/SD-SDI flexibility is future proof, and exceeds previous generations' performance.

4K MICROSPLIT MSX-L Reclocking DA Specification

Formats	4K 12G-SDI, Ultra 4K 6G-SDI, 3G-SDI, 1.5G-SDI, 270Mb-SDI. Meets and exceeds SMPTE-424, SMPTE-292, SMPTE-259
Inputs	1x12G/ 6G/ 3G/ 1.5G/ 270Mb - Auto-selectable SDI, 1xBNC
Outputs	(same as above, but with proper number of outputs for each device), equalization and re-clocking
Cable Re-clocking and Equalization	(all with Belden 1694A - divide by half for Belden 1505): 75 meters (246ft) at 12G, 100 meters (328ft) at 6G, 220 meters (722ft) at 3G, 265 meters (870ft) at HD, 530 meters (1740ft) at SD
Input return loss	-8dB at 12G, -9dB at 6G, -13dB at 3G, -18dB HD/SD
Output return loss	Return loss -6dB at 12G, -8.5dB at 6G, -15dB at 3G, -23dB at HD/SD

About

Freakhsow HD is now taking its fifty years of combined experience and focusing on manufacturing the industry’s most advanced and cost efficient tools for the video professional.
